| Appellation | Code | Rated Current | Earth contact position | Rated Voltage Range | Number of poles | Protection Grade |
| Plug | JH6132 | 16A | 6h | 220-250V~ | 2P+E | IP67 |
| Plug | JH6232 | 32A | 6h | 220-250V~ | 2P+E | IP67 |

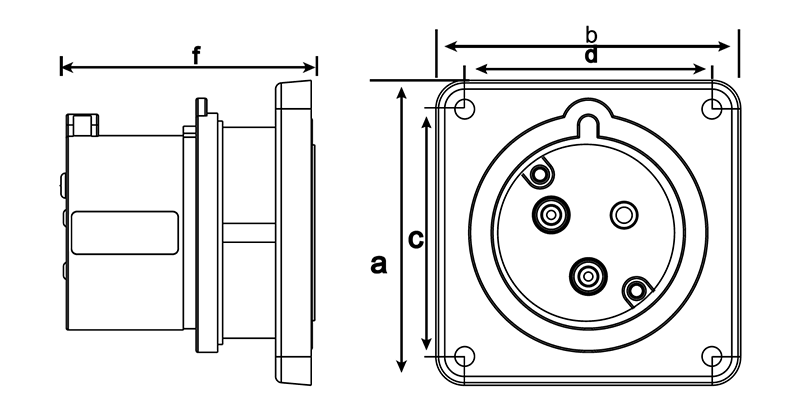

| Code | Size(mm) | Cable nominal cross-section area(mm²) | ||||
| a | b | c | d | f | ||
| JH6132 | 87 | 87 | 71 | 71 | 70 | 1-2.5 |
| JH6232 | 87 | 87 | 71 | 71 | 85 | 2.5-6 |
