| Appellation | Code | Rated Current | Earth contact position | Rated Voltage Range | Number of poles | Protection Grade |
| Socket | JH3142N | 16A | 6h | 380-415V~ | 3P+E | IP67 |
| Socket | JH3242N | 32A | 6h | 380-415V~ | 3P+E | IP67 |

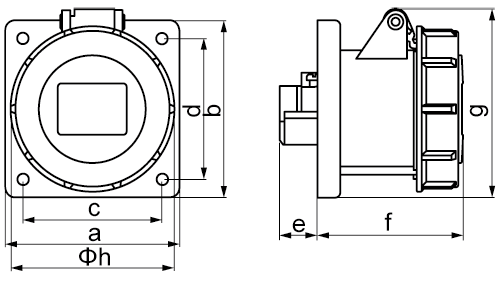

| Code | Size(mm) | Cable nominal cross-section area(mm²) | |||||
| axb | cxd | e | f | g | h | ||
| JH3142N | 76 | 61 | 17 | 61 | 5.5 | 53 | 1-2.5 |
| JH3242N | 76 | 61 | 20 | 74 | 5.5 | 60 | 2.5-6 |
