| Appellation | Code | Rated Current | Earth contact position | Rated Voltage Range | Number of poles | Protection Grade |
| Connector | JH2152N | 16A | 6h | 380-415V~ | 3P+N+E | IP67 |
| Connector | JH2252N | 32A | 6h | 380-415V~ | 3P+N+E | IP67 |

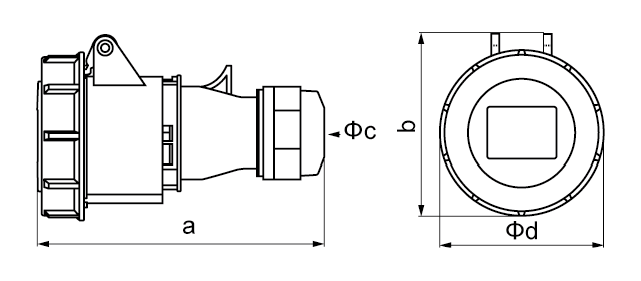

| Code | Size(mm) | Cable nominal cross-section area(mm²) | |||
| a | b | c | sw | ||
| JH2152N | 145 | 92 | 8-16 | 42 | 1-2.5 |
| JH2252N | 168 | 102 | 12-22 | 50 | 2.5-6 |
