| Appellation | Code | Rated Current | Earth contact position | Rated Voltage Range | Number of poles | Protection Grade |
| Socket | H4152 | 16A | 6h | 380-415V~ | 3P+E | IP67 |
| Socket | JH4252 | 32A | 6h | 380-415V~ | 3P+E | IP67 |

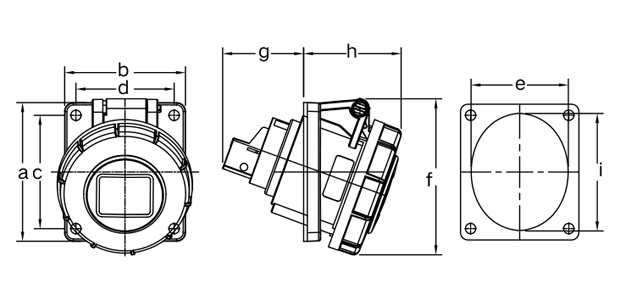

| Code | Size(mm) | ||||||||
| a | b | c | d | e | f | g | h | i | |
| JH4152 | 101 | 93 | 85 | 77 | 65 | 92 | 41 | 54 | 65 |
| JH4252 | 101 | 93 | 85 | 77 | 68 | 99 | 54 | 54 | 85 |
